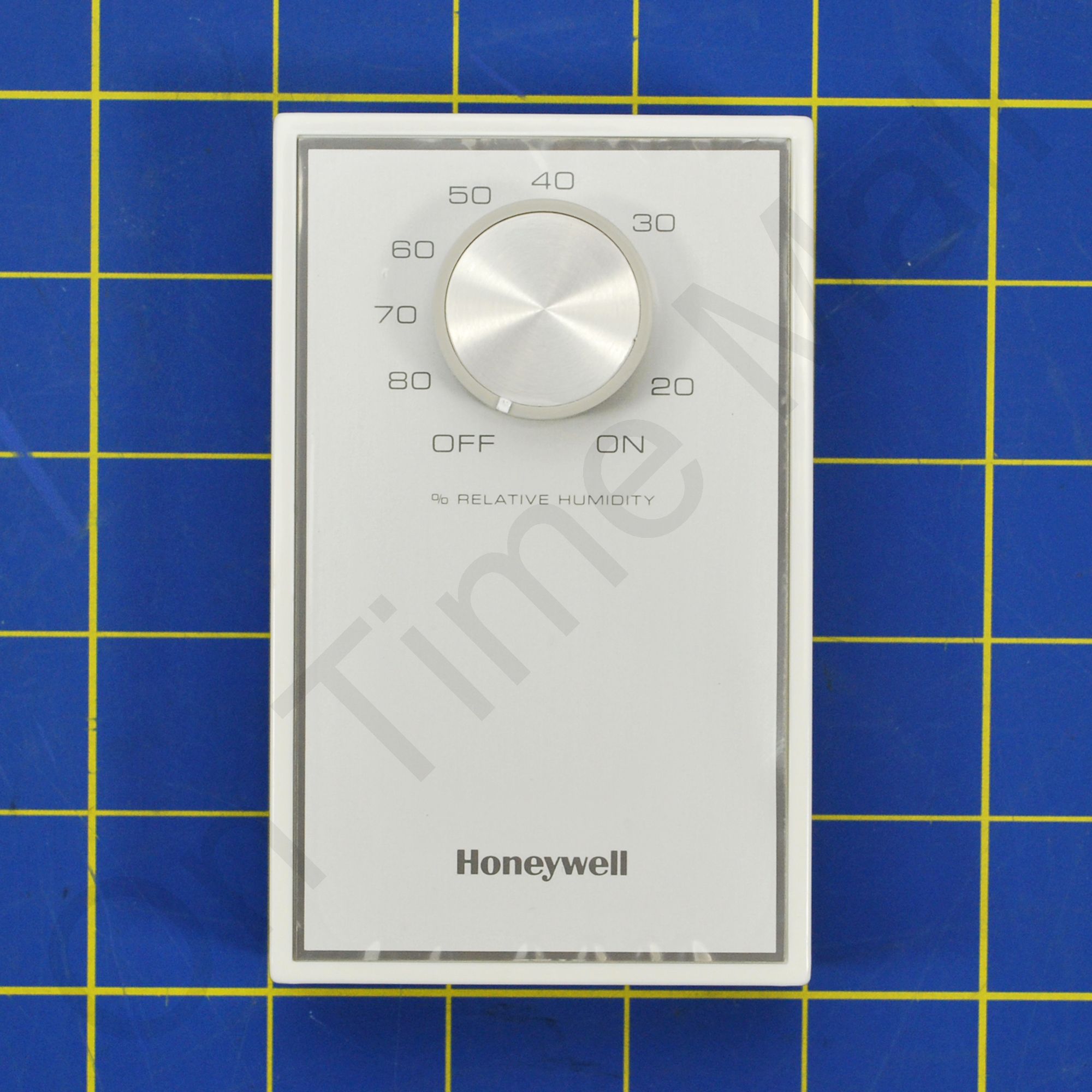

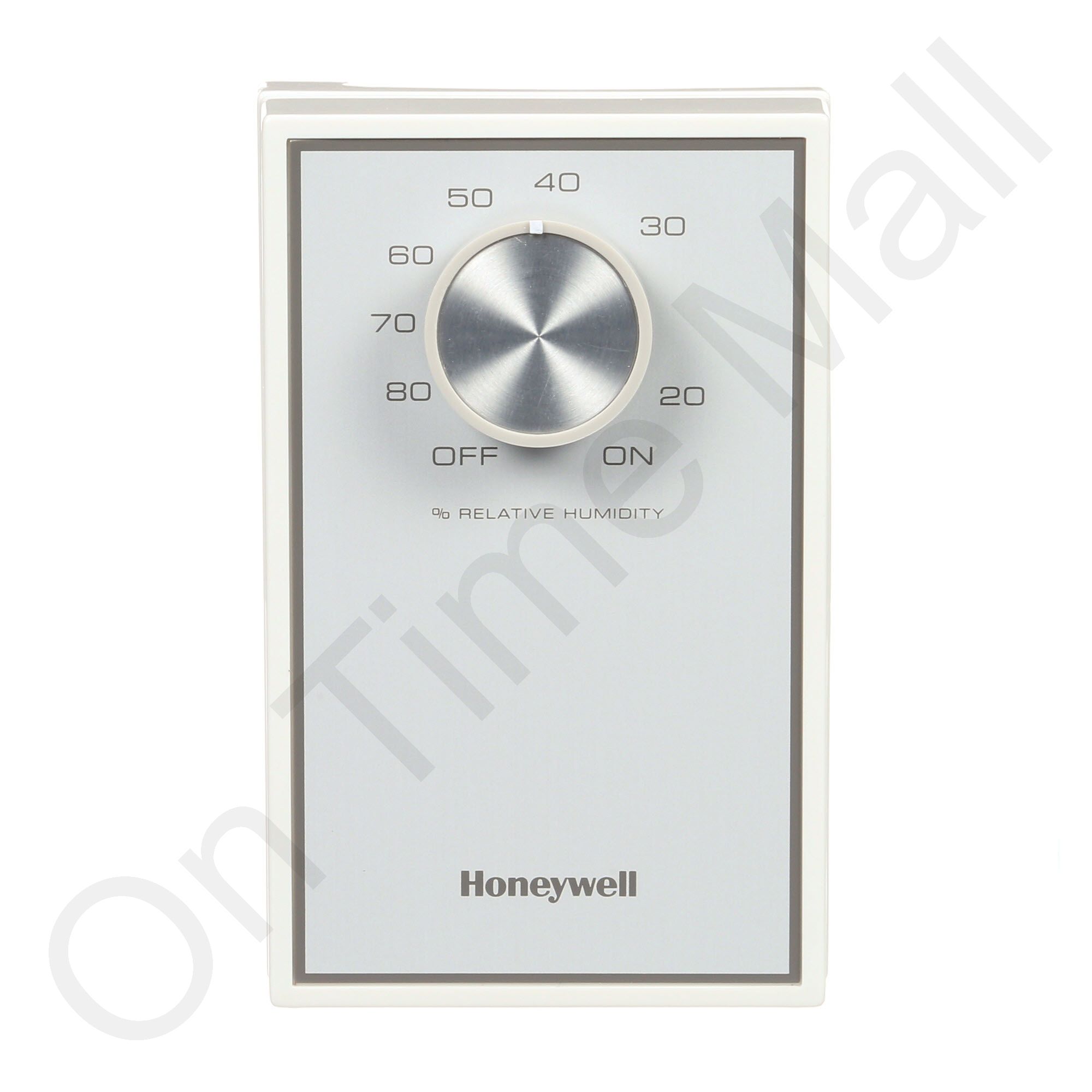

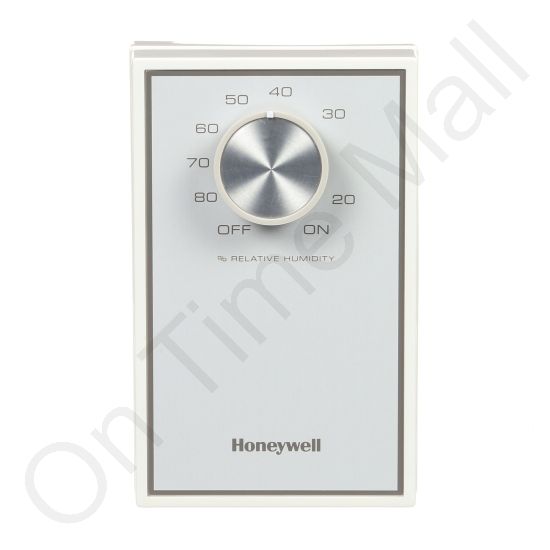

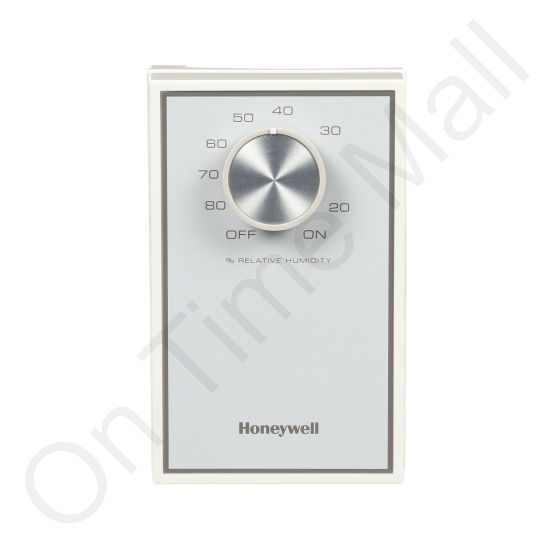

Honeywell H46C1166 Dehumidistat

SKU#: H46C1166
List Price: $82.21 Sale Price: $56.24
Product Description

Honeywell H46C1166 Dehumidistat. Wall mount humidity controller. Provide automatic control of a humidifier or dehumidifier for dehumidification in air conditioning systems. Switch closes on rise in humidity.

Positive ON-OFF settings permit manual operation of controlled equipment.

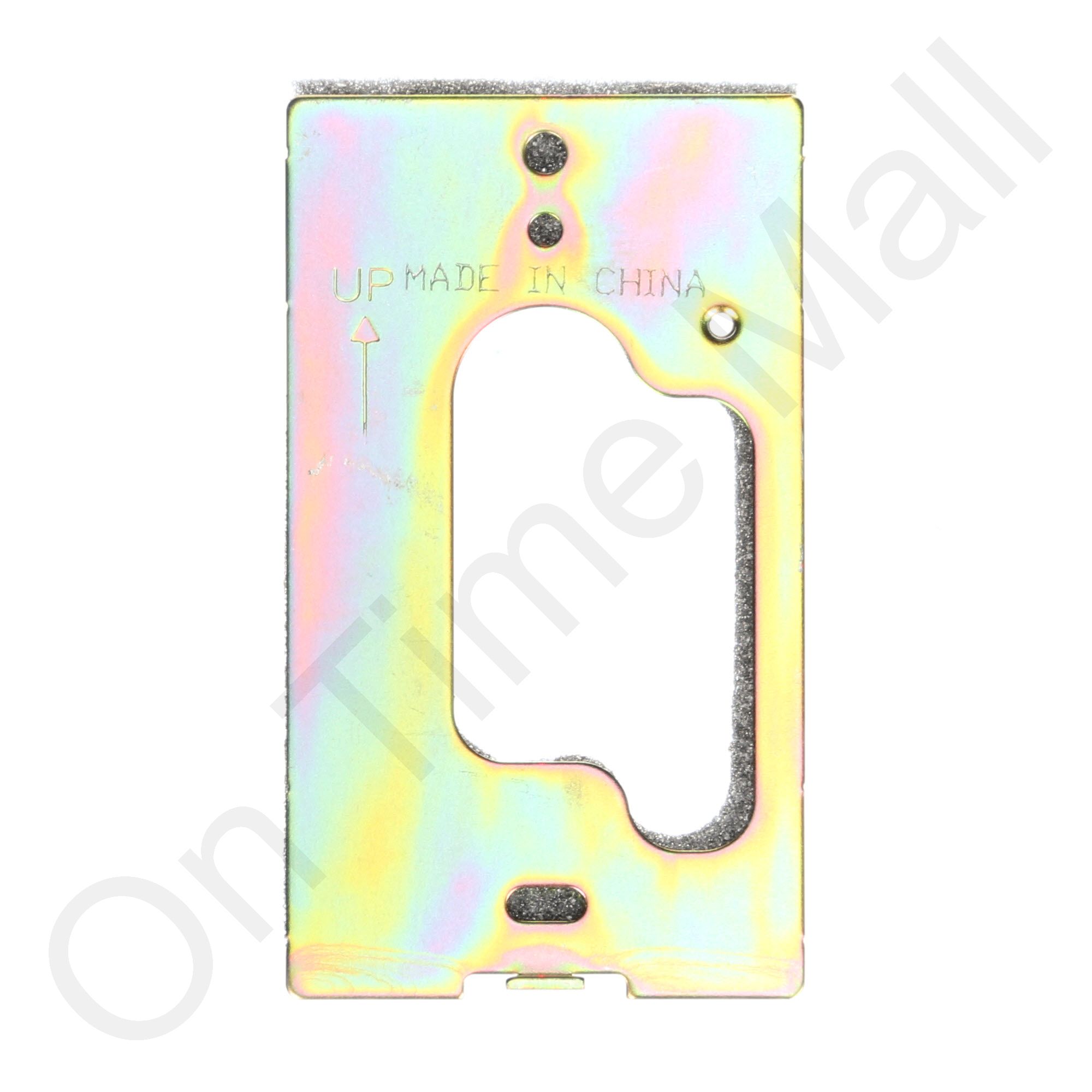

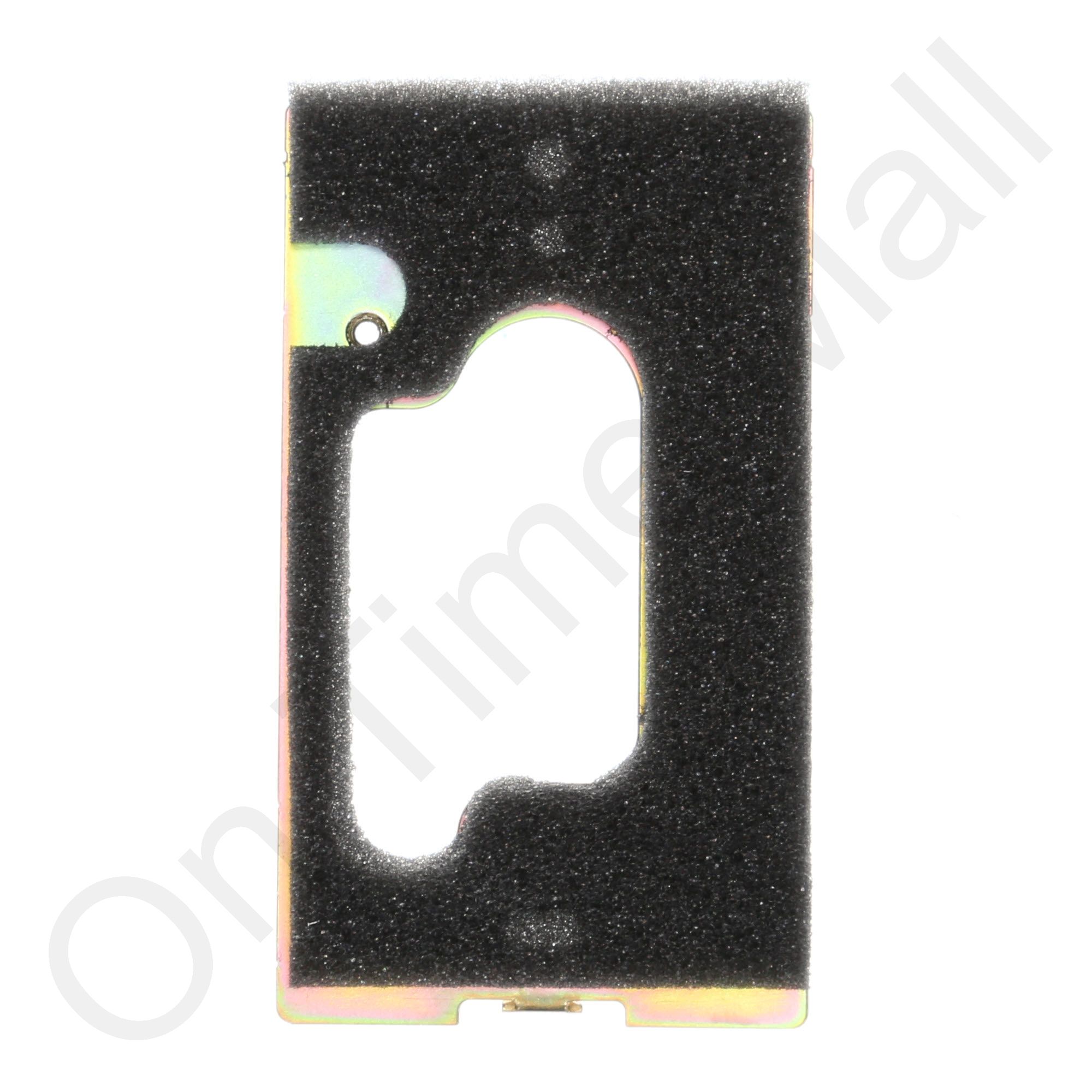

Impact-resistant, molded plastic cover mounts on wall.
Fully enclosed, dust free, SPST, snap-acting switch.
Sensing element of thin, moisture sensitive nylon ribbon provides reliable operation even when ambient temperature conditions change.

Note: DESIGNED FOR USE ON DEHUMIDIFIER not on a HUMIDIFIER

Replaces the following: H46C1000

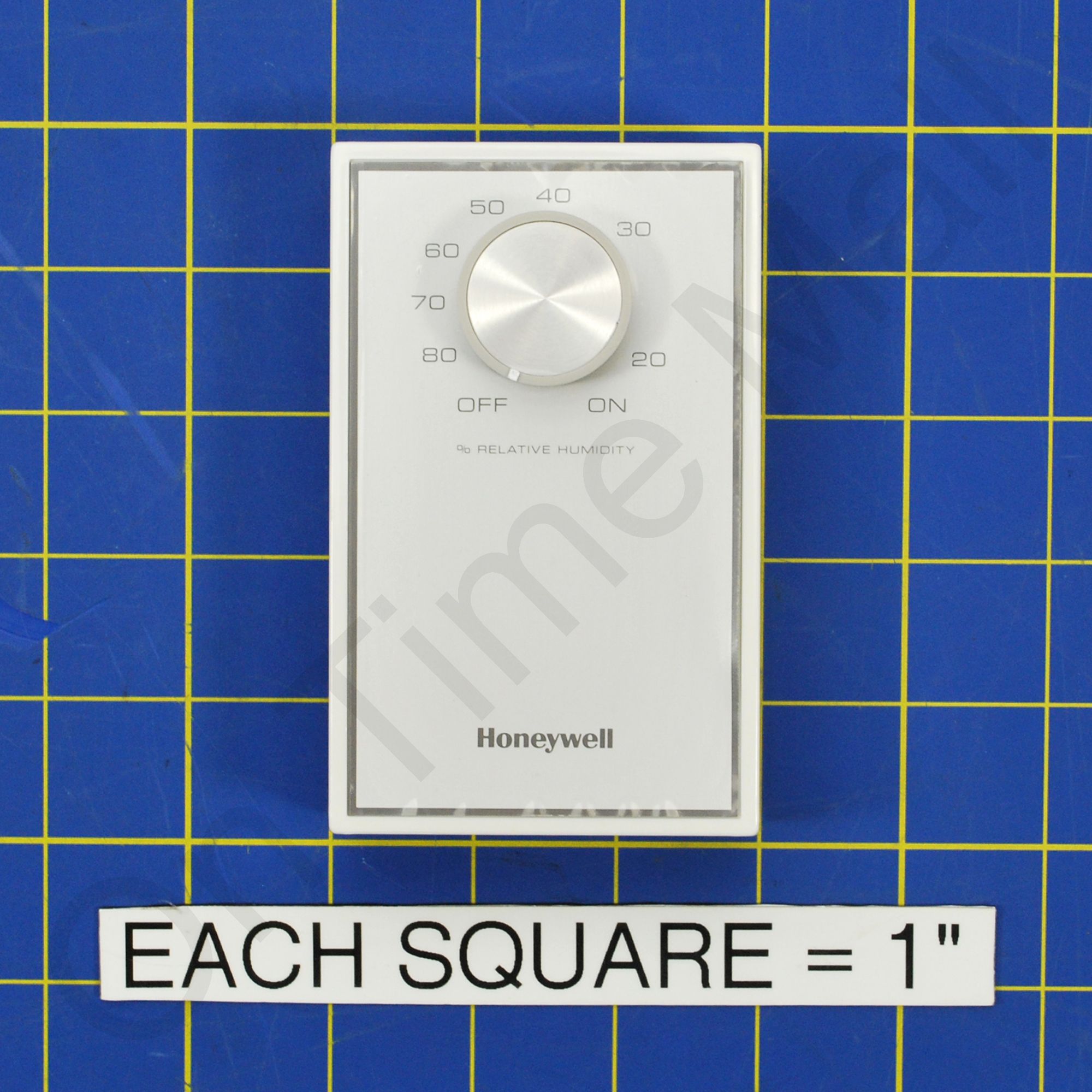

Specifications

Width:
3 (inches)
Height:
4 3/4 (inches)
Thickness:
1 1/2 (inches)
Weight:
10 (oz)
Full Load Amps at 120 VAC:
7.5
Full Load Amps at 240 VAC:
3.75
Locked Rotor Amps at 120 VAC:
30
Locked Rotor Amps at 240 VAC:
15

Product Reviews

Add your review of this product Global rating: 5.00 from 2 reviews
Mar 29, 2012
"H46C1166 Dehumidistat" by Robert Wunderlin (Sun Prairie WI US)

Hi, The product worked good, just not what I wanted. I wanted to set it parllel with the thermistat. So it would close when the humidity got above 70%, it would close, turning on the A/C. If the micro switch had all three tabs I could of switched. But the one tab was cut off. I tried to solder a wire to it, but ruined the switch inside. Most likely with heat. Do you have a dehumidistat control that works opposite of H46C1166?


Dec 1, 2010
H46C1166 by ( )

Product is completely acceptable as expected.
