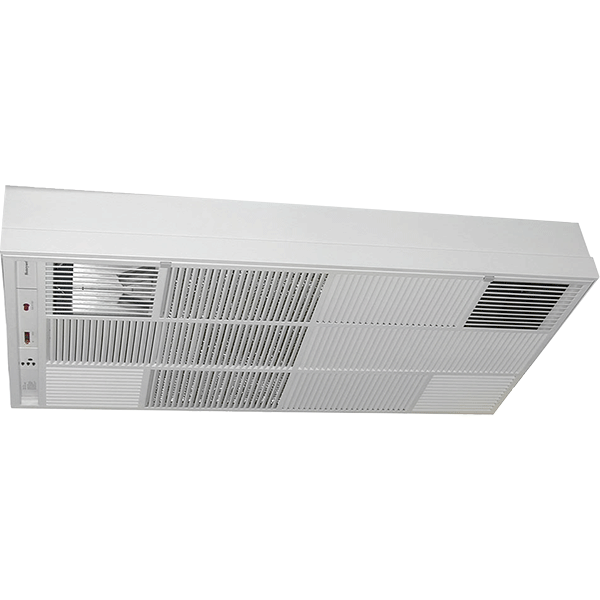

Honeywell F57A Series Air Cleaner Parts

Search Results for

    Parts

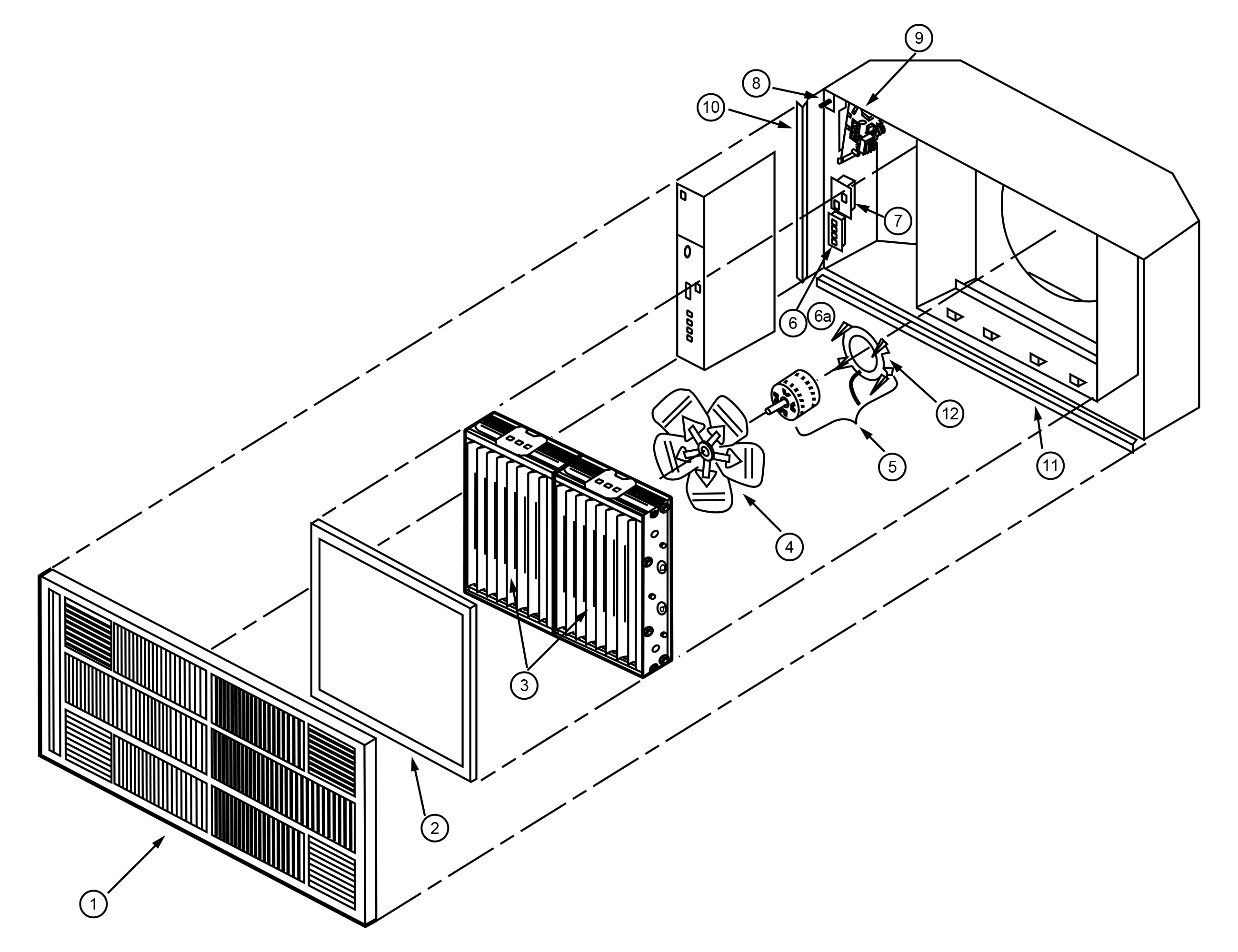

    Diagram

    Parts
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12

    Parts

    1. 1
      Grill Assembly
      Grill Assembly
      SKU: 196114B
      $324.29
    2. 2
      Prefilter
      Prefilter
      SKU: 195910
      $77.31
    3. 3
      Collector Cell
      Collector Cell
      SKU: FC37B1030
      $297.83
    4. 3
      Collector Cell
      Collector Cell
      SKU: HNYFC37B1030B
    5. 4
      Fan Blade
      Fan Blade
      SKU: 196205
      $109.03
    6. 5
      Fan Motor and Plate
      $314.89
    7. 6
      Control Switch
      Control Switch
      SKU: 190382
      $58.01
    8. 6
      IR Receiver
      IR Receiver
      SKU: 203904A
      $201.46
    9. 7
      Switch
      Switch
      SKU: 196214
      $37.27
    10. 8
      Interlock Switch
      Interlock Switch
      SKU: 203324
      $49.38
    11. 8
      Interlock Switch
      Interlock Switch
      SKU: HNY32004661001A
      $47.45
    12. 9
      Power Supply Circuit Board
      $270.52
    13. 10
      Vinyl Strips
      Vinyl Strips
      SKU: 196150
      $16.86
    14. 11
      Vinyl Strips
      Vinyl Strips
      SKU: 196151
      $34.85
    15. 12
      Motor Bracket
      Motor Bracket
      SKU: 202791
      $56.02

    Parts Not In Diagram

    1. Not Shown
      IR Transmitter
      IR Transmitter
      SKU: 203905A
      $81.21
    2. Not Shown
      Charcoal Filter
      Charcoal Filter
      SKU: 195911
      $146.29
    3. Not Shown
      Shoulder Mounts
      Shoulder Mounts
      SKU: 196133
      $22.98
    4. Not Shown
      Mounting Spacers
      Mounting Spacers
      SKU: 196134
      $19.49
    5. Not Shown
      Ionizer Wire
      Ionizer Wire
      SKU: 136434AA
      $16.74
    6. Not Shown
      Remote Switch
      Remote Switch
      SKU: 190097C
      $173.41
    7. Not Shown
      Contact Board
      Contact Board
      SKU: 190912A
      $41.85
    8. Not Shown
      Round Insulator
      Round Insulator
      SKU: 203366B
      $4.80
    9. Not Shown
      Isolation Bushing
      Isolation Bushing
      SKU: 4074EGT
      $39.43
    10. Not Shown
      Remote Kit
      Remote Kit
      SKU: HNY36041
      $266.69
    11. Not Shown
      Remote Kit
      Remote Kit
      SKU: HNY3604
      $238.18
    12. Not Shown
      Cell Handle
      Cell Handle
      SKU: HNY197935
      $14.23
