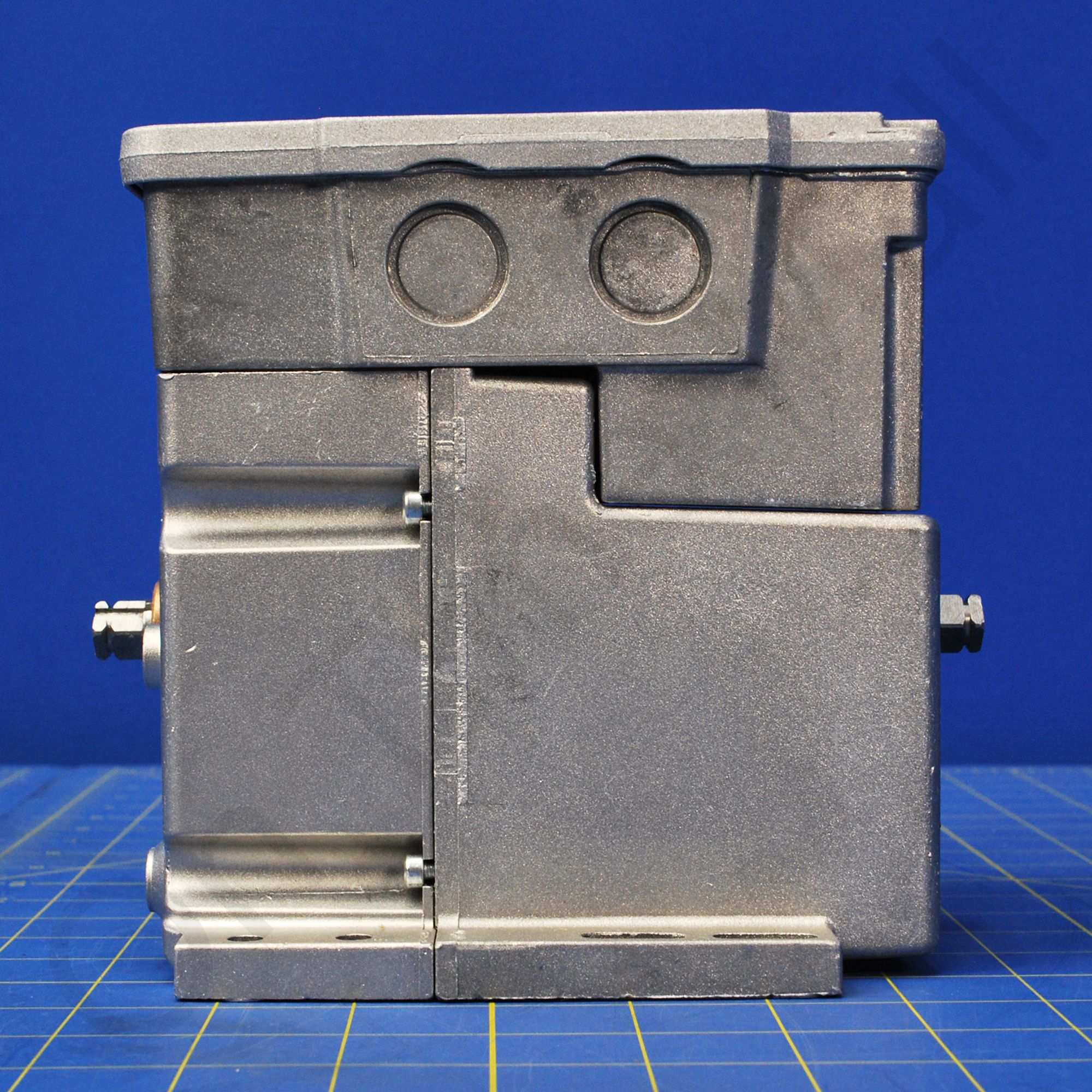

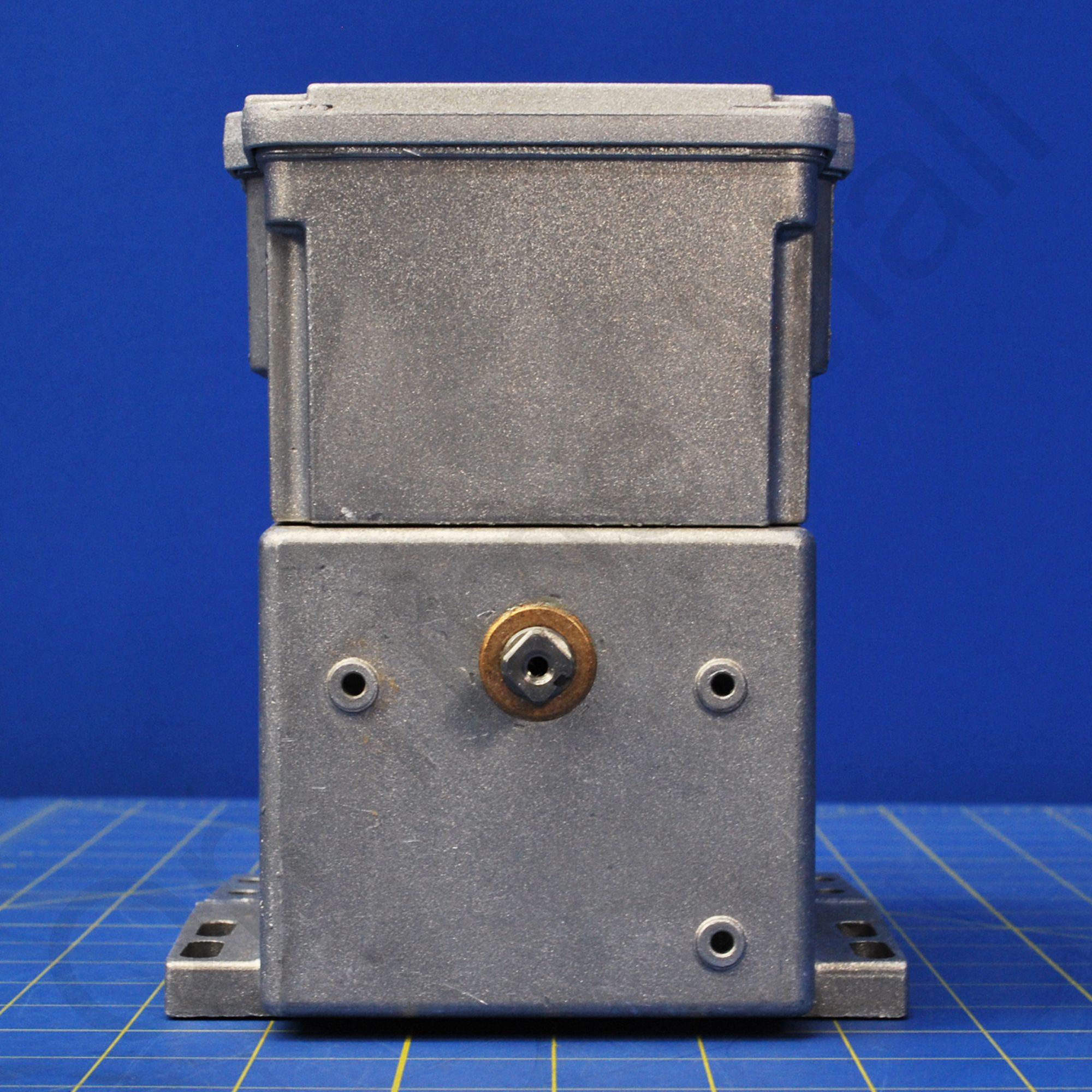

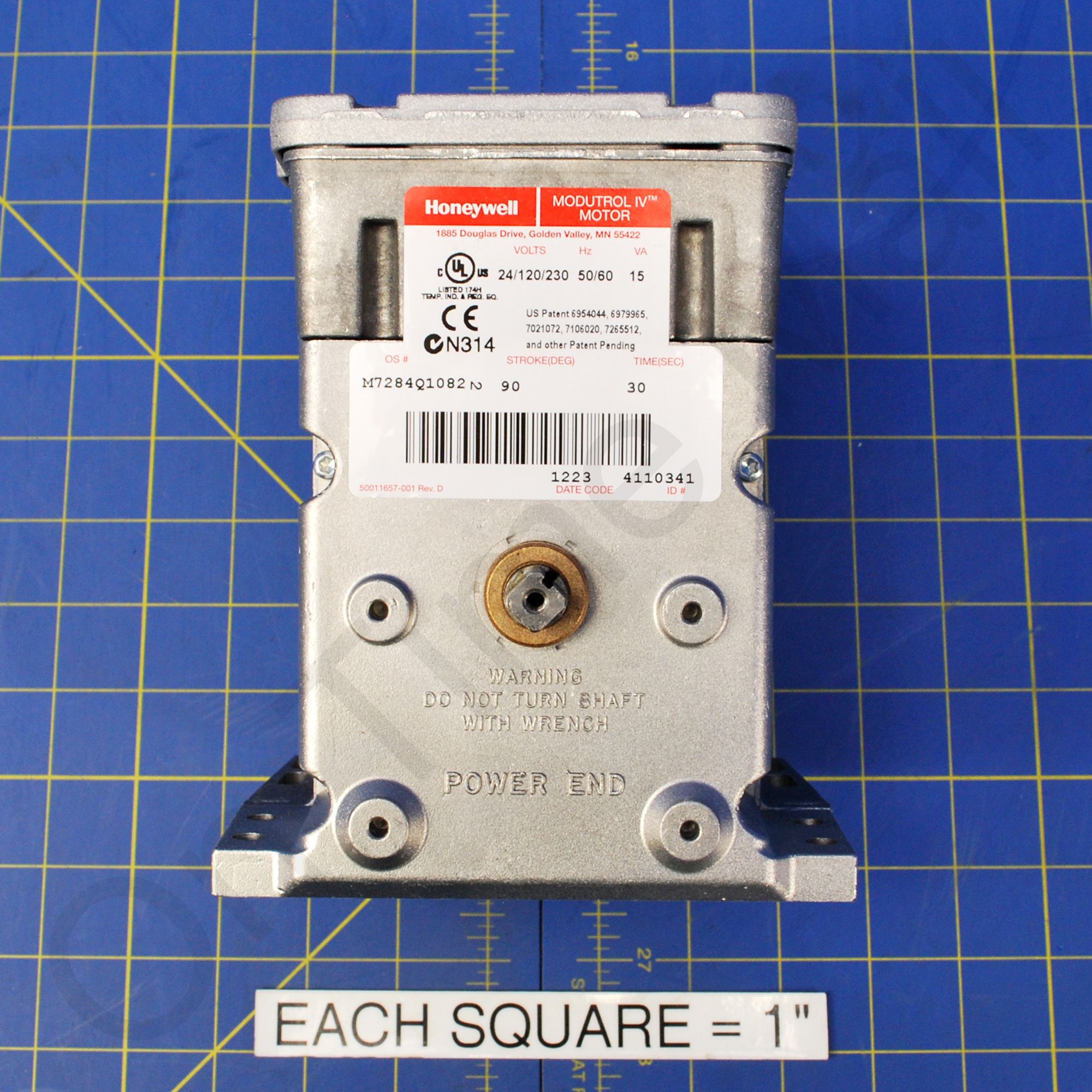

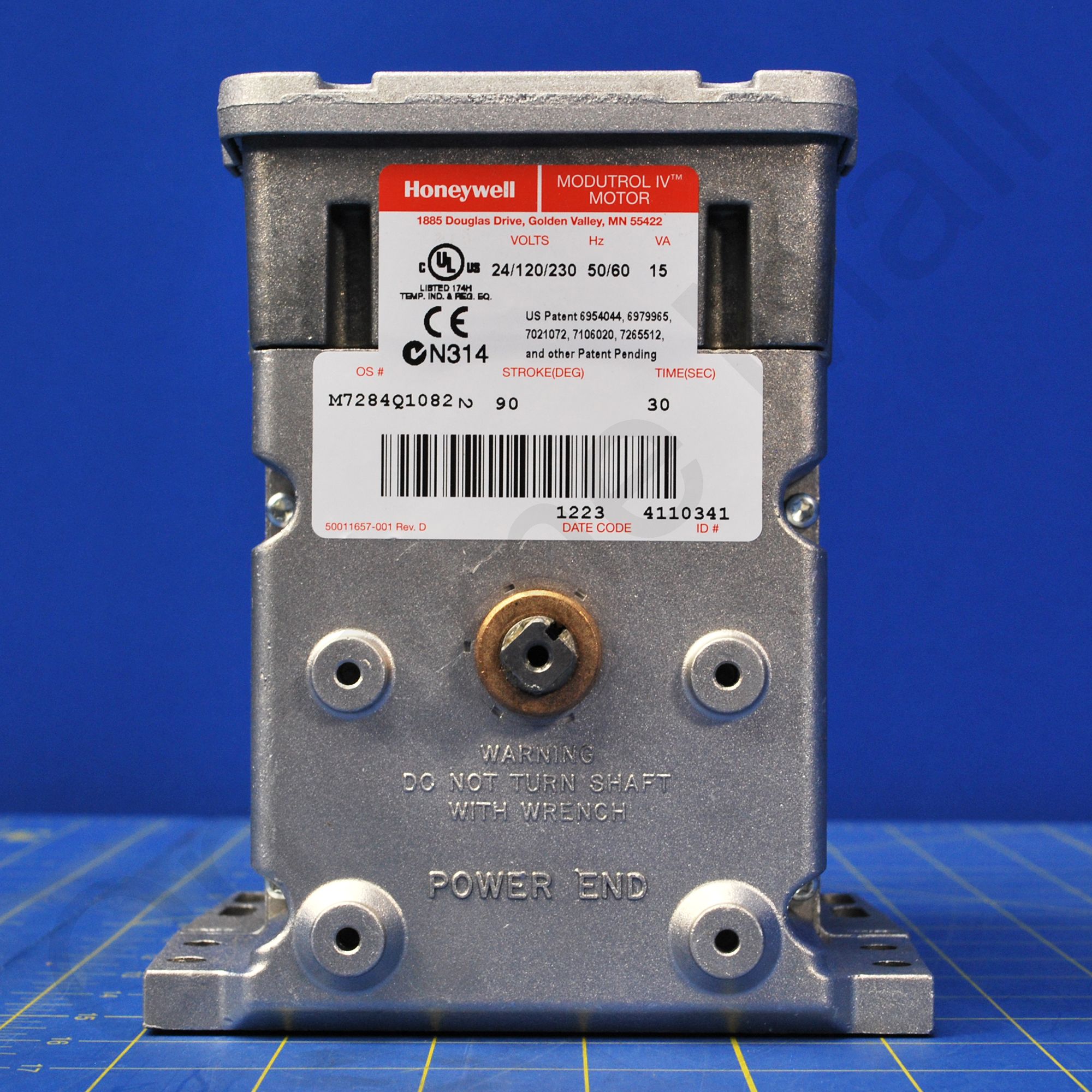

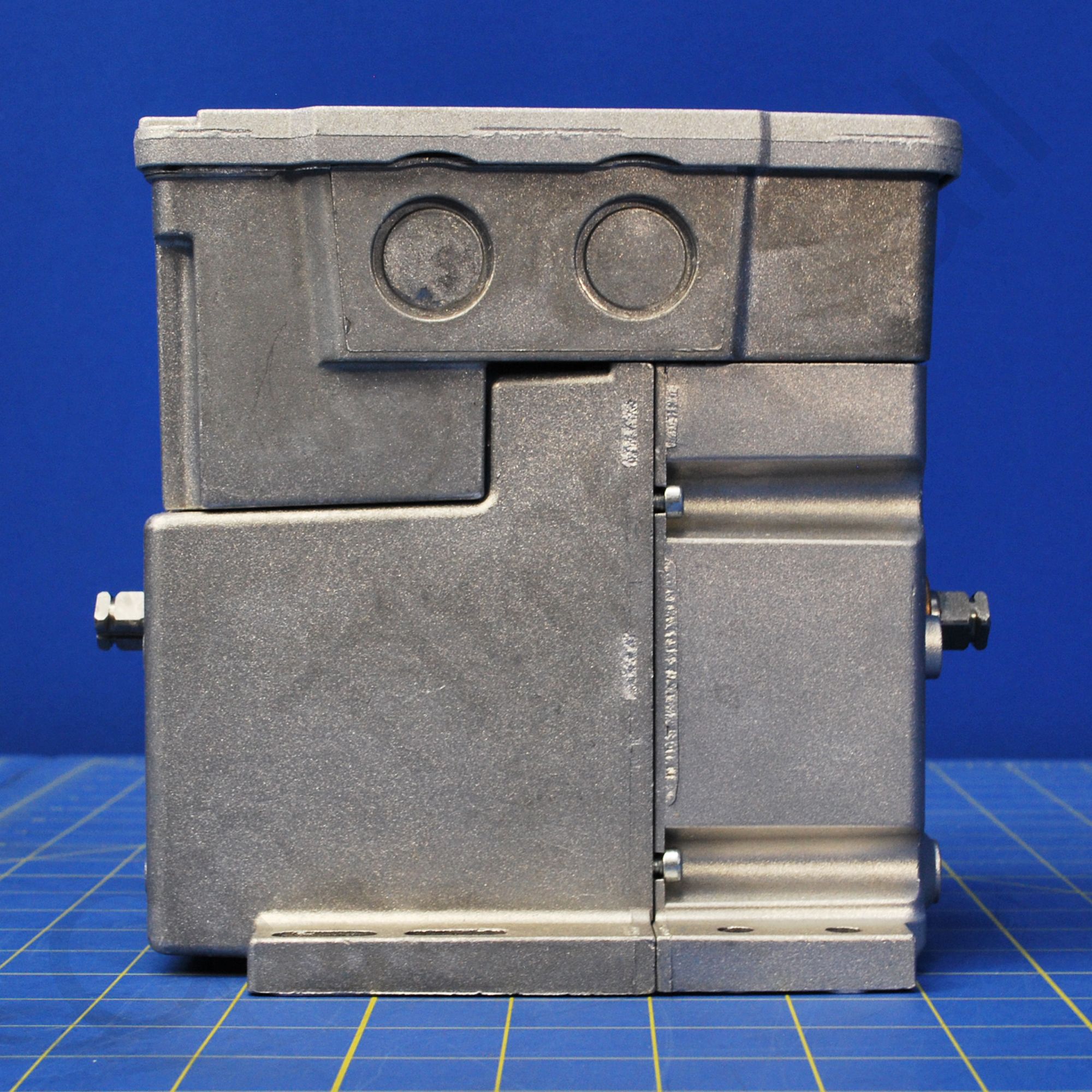

Honeywell M7284Q1082 Actuator
SKU
M7284Q1082
Brand
Honeywell
$1,897.35
Need Help
Assistance Available
Easy Returns
Quick & Hassle Fee
Guaranteed Fit
Always the correct part
Overview

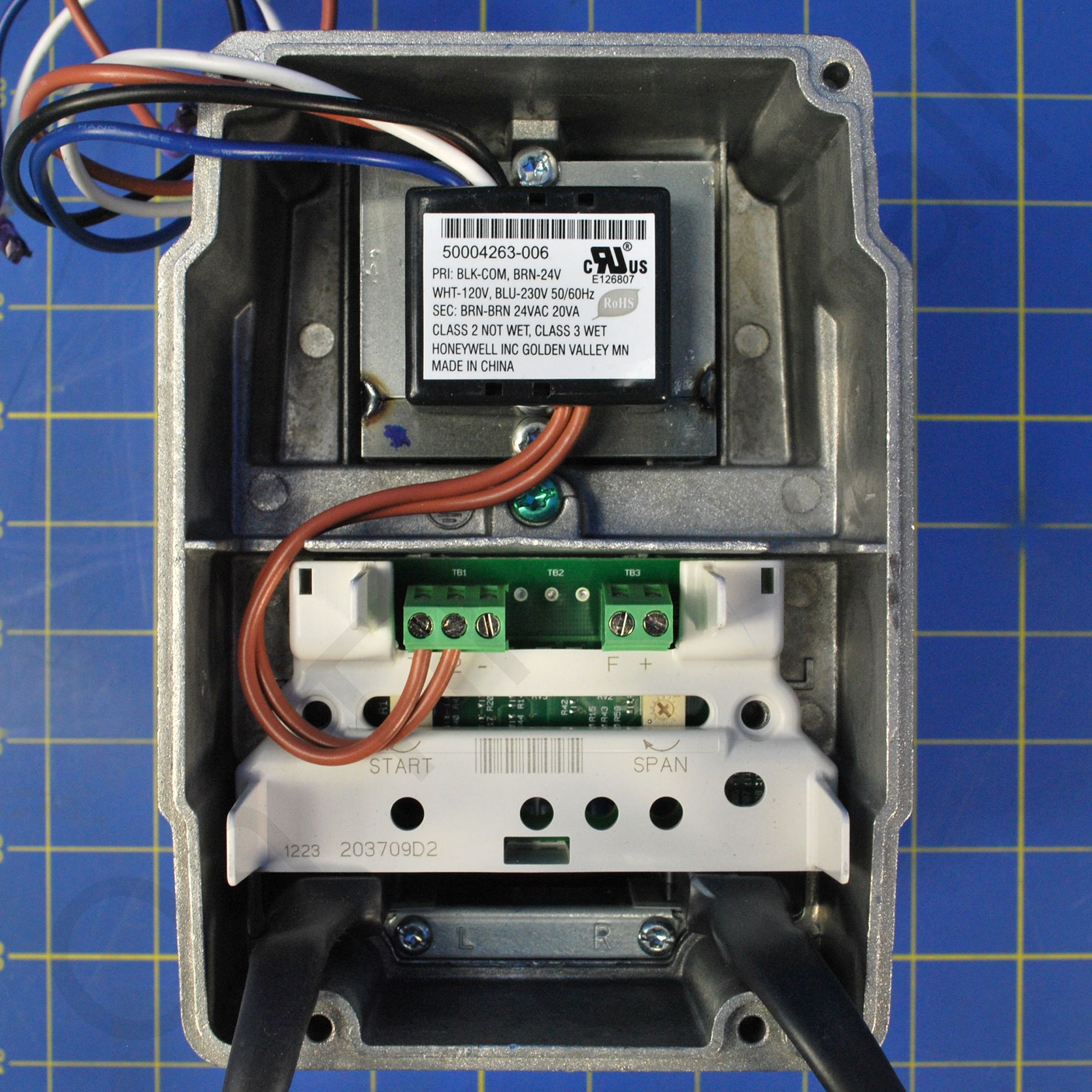

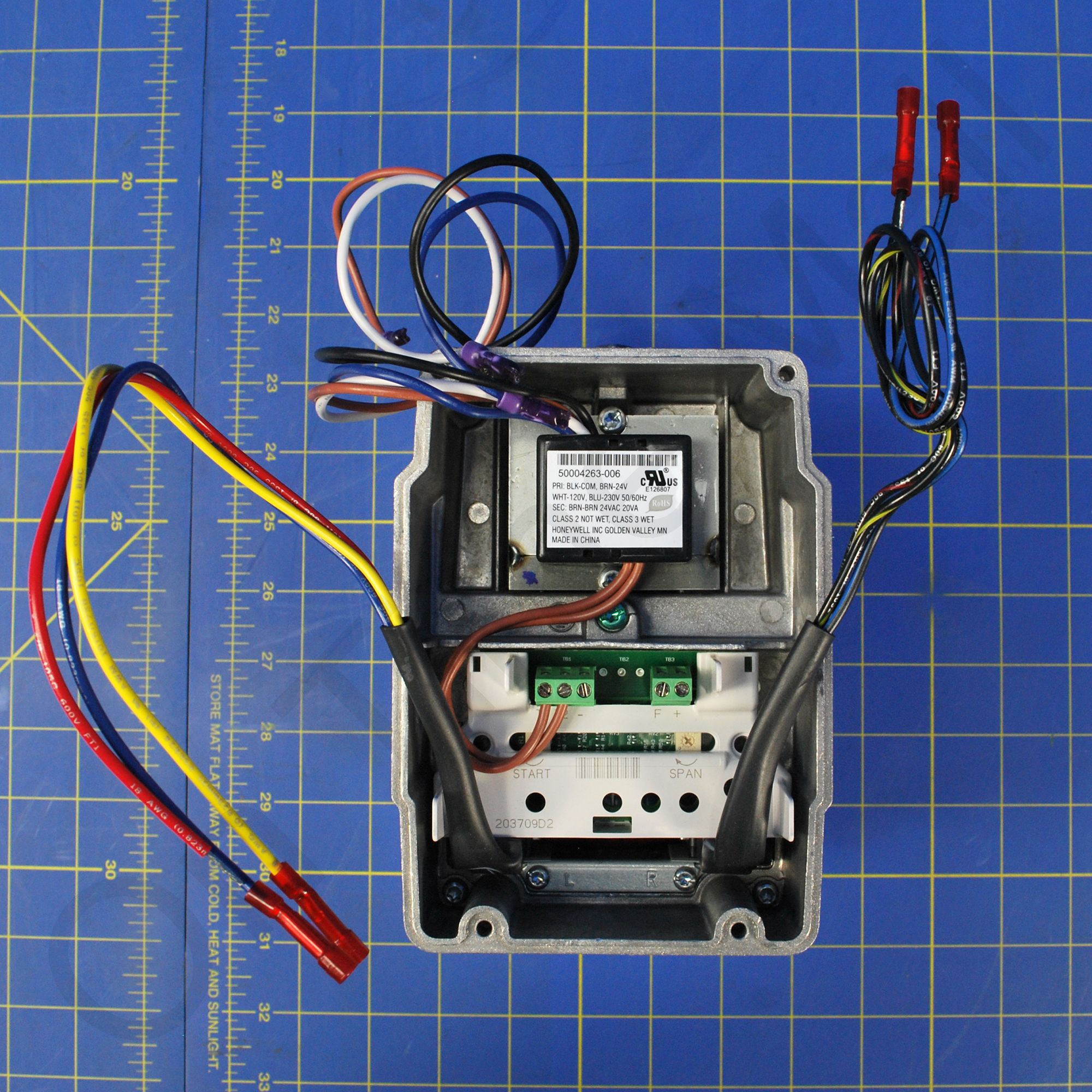

Honeywell M7284Q1082 Actuator spring return return motor (per motor type) used to control dampers and valves. The motor accepts a current or voltage signal from an electronic controller to position a damper or valve at any point between open and closed. Integral spring return returns motor to normal position in the event of power failure on spring return models. Integral junction box provides NEMA 3 weather protection if motor is mounted in the upright position. Motor and circuitry operate from 24 Vac. Quick-connect terminals are standard--screw terminal adapter is available. Adapter bracket for matching shaft height of older motors is available. Motors have field adjustable stroke (90 to 160 degrees). Integral auxiliary switches are available factory mounted, or can be field added. Spring return motors can operate valve linkages from power end or auxiliary end shafts for normally closed or normally open valve applications. All models have dual shafts (slotted and tapped on both ends). All models have auxiliary switch cams. Fixed torque throughout the entire voltage range. Motors are designed for either normally open or normally closed valves and dampers. Models available with adjustable start (zero) and span. Models available with 4 to 20 mA input signal. Models available with 2 to 10 Vdc input signal. Die-cast aluminum housing.
Specifications
Manufacturer | Honeywell |
---|---|
Product Type | Replacement Part |
